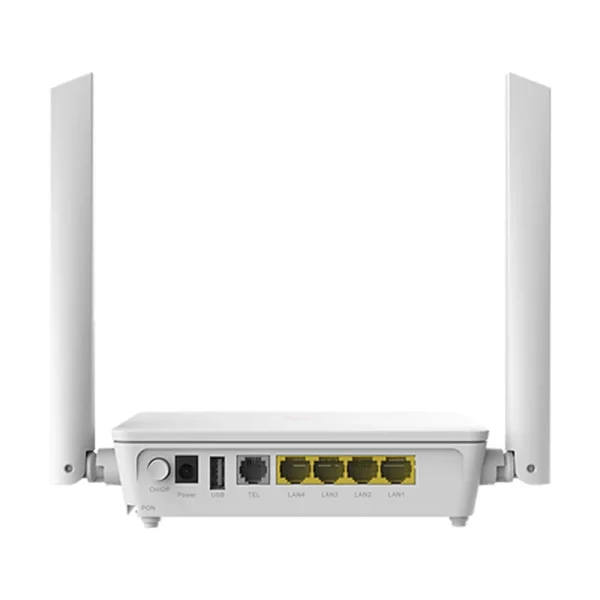

| Parameters | Huawei OptiXstar EG8145X6-10 |
| Dimensions (H x W x D)(without external antenna and pads) | 35 mm x 195 mm x 125 mm |
| Operating temperature | 0°C to 40°C |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Power adapter input | 100–240 V AC, 50/60 Hz |
| System power supply | 11–14 V DC, 1.5 A |
| Static power consumption | 6 W |
| Maximum power consumption | 18 W |
| Memory | 128 M Flash, 256 M RAM |
| NNI | GPON |
| UNI | 4 x GE+1 x POTS+2.4G/5G Wi-Fi+1 x USB |
| Indicators | Power/PON/LOS/LAN/TEL/USB/WLAN/WPS |
| Weight | About 372 g |
